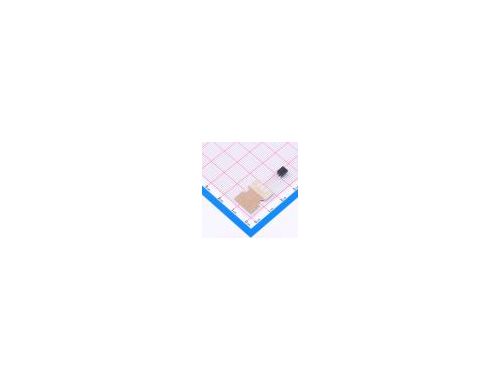

S9012-TA

Attribute parameter values

Transistor Product Catalog (BJT)

Transistor type PNP

Collector current (IC) 500 mA

Collector breakdown voltage (VCEO) 25V

Power 625 MW

Attribute parameter values

DC gain coefficient（ hFE@Ic VCE 400 at 50 mA, 1 V

Rated frequency (feet) 150 MHz

Collector Disconnect Current (ICBO) 100 V

Collector emitter (VCE (SAT) @ IC, IB) at 50mA 600 mV, 5mA

Working temperature -55 ℃~150 ℃.
