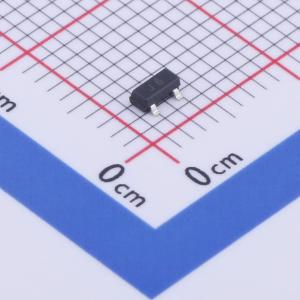

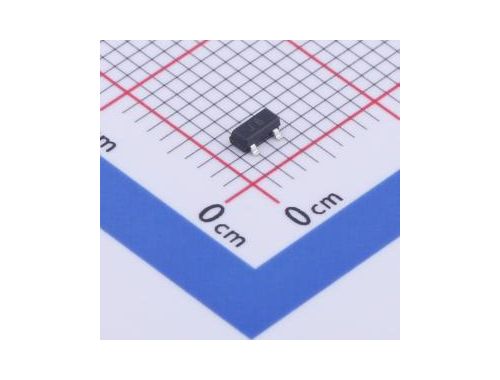

S9014

Attribute parameter values

Transistor Product Catalog (BJT)

NPN transistor type

Collector current (IC) 100 mA

Collector breakdown voltage (VCEO) 45 V

Power of 200 MW

Attribute parameter values

DC gain coefficient（ hFE@Ic VCE 1000 at 1mA, 5V

Rated frequency (feet) 150 MHz

Collector Disconnect Current (ICBO) 100 V

Collector emitter (VCE (SAT) @ IC, IB) 300mV, 100mA, 5mA

Working temperature -55 ℃~150 ℃.
