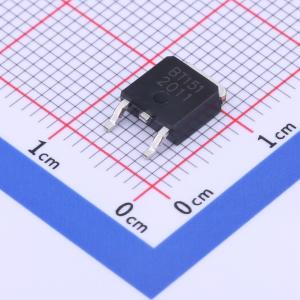

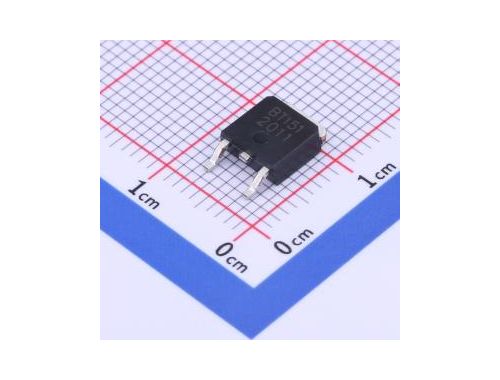

BT151D

Product Catalog: Controllable Silicon (SCR)/Modules

SCR type unidirectional SCR

Shutter voltage (VGT) 1.3V

Maintain current (IH) at 40 mA

Peak disconnect voltage (VDRM) 600 V

Shutter current (IGT) 10mA

Attribute parameter values

Turn on peak voltage (VTM) 1.55V

Starting current（ Itsm@f ）95a at 50Hz

Average scattering shutter power (PG (AV)) 1 W

Standard turn-on current (IT (RMS)) 12A

Working temperature -40 ℃~125 ℃.
