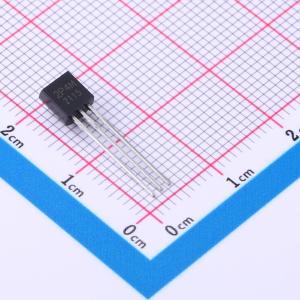

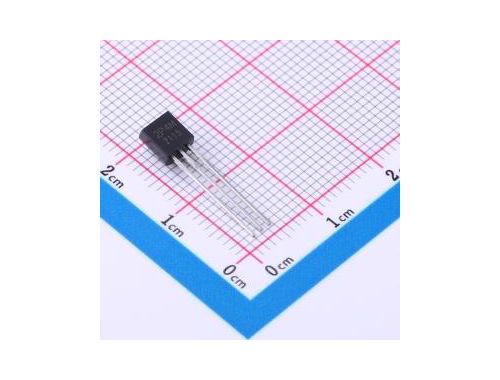

2P4M
Product Catalog: Controllable Silicon (SCR)/Modules
SCR type unidirectional SCR
Shutter voltage (VGT) 1.2V
Maintain current (IH) at 4 mA
Peak disconnect voltage (VDRM) 600 V
Shutter current (IGT) 200UA
Attribute parameter values
Turn on peak voltage (VTM) 1.55V
Starting current( Itsm@f (20A at 50 Hz)
Average Scattering Shutter Power (PG (AV)) 100 MW
Root mean square current (IT (RMS)) 2A
Working temperature -40 ℃~125 ℃.
SCR type unidirectional SCR
Shutter voltage (VGT) 1.2V
Maintain current (IH) at 4 mA
Peak disconnect voltage (VDRM) 600 V
Shutter current (IGT) 200UA
Attribute parameter values
Turn on peak voltage (VTM) 1.55V
Starting current( Itsm@f (20A at 50 Hz)
Average Scattering Shutter Power (PG (AV)) 100 MW
Root mean square current (IT (RMS)) 2A
Working temperature -40 ℃~125 ℃.
