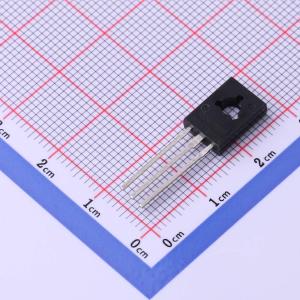

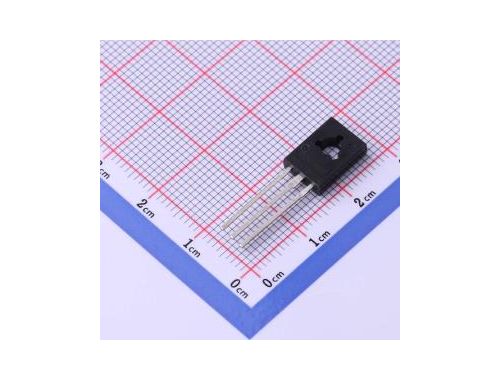

X0405C

Product Catalog: Controllable Silicon (SCR)/Modules

SCR type unidirectional SCR

Shutter voltage (VGT) 800 mV

Maintain current (IH) 5mA

Peak disconnect voltage (VDRM) 600 V

Shutter current (IGT) 200UA

Attribute parameter values

Turn on peak voltage (VTM) 1.55V

Starting current（ Itsm@f 30A at 50 Hz

Average scattering shutter power (PG (AV)) 200 MW

Root mean square current (IT (RMS)) at startup 4A

Working temperature -40 ℃~125 ℃.
