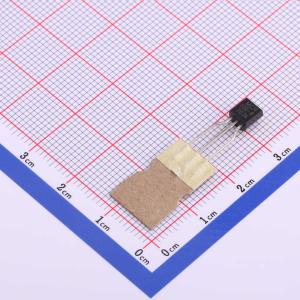

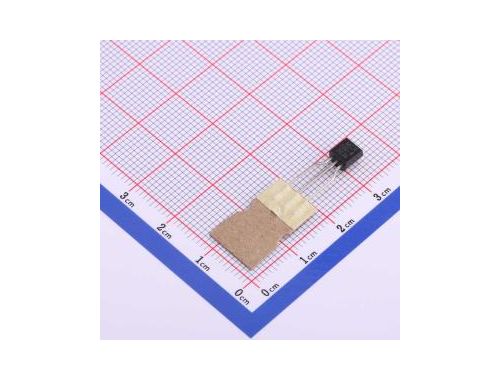

MCR100-8G

Product Catalog: Controllable Silicon (SCR)/Modules

SCR type unidirectional SCR

Shutter voltage (VGT) 800 mV

Maintain current (IH) at 4 mA

Peak disconnect voltage (VDRM) 800 V

Shutter current (IGT) 200UA

Attribute parameter values

Turn on peak voltage (VTM) 1.5 V

Starting current（ Itsm@f ）At 8a, 50 Hz

Average Scattering Shutter Power (PG (AV)) 100 MW

Root mean square current (IT (RMS)) at startup 800 mA

Working temperature -40 ℃~125 ℃.
