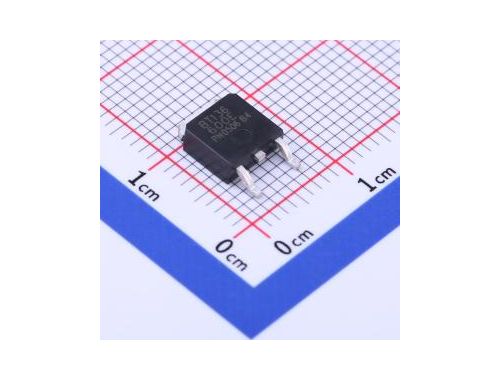

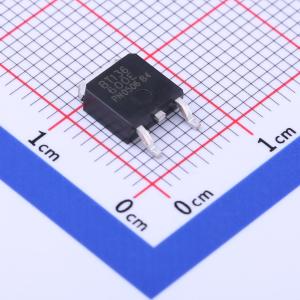

BT136D

Value of attribute parameter

Product catalogue Thyristor (SCR)/module

Type SCR Two-way SCR

Shutter operating voltage (Vgt) 1.3V

Holding current (Ih) 15 mA

Peak Off Voltage (Vdrm) 600 V

Shut-off current (Igt) 10 mA

Value of attribute parameter

Peak On Voltage (Vtm) 1.55V

Starting current ( Itsm@f 25A at 50 Hz

Average dissipated shutter power (PG(AV)) 500 MW

Average square current on (It (rms)) 4A

Operating Temperature -40℃~+125℃
