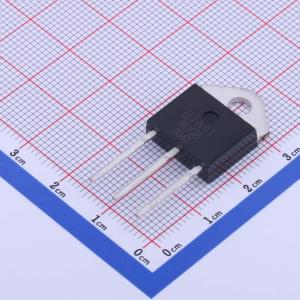

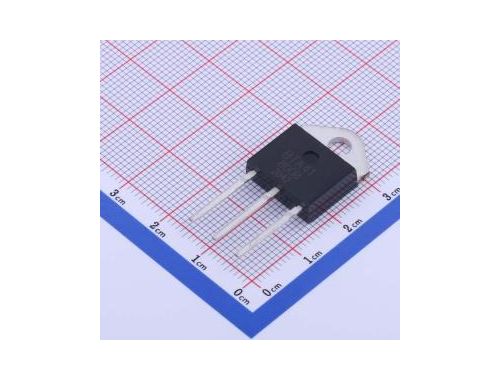

BTA41-800BW

Attribute parameter values

Product Catalog: Controllable Silicon (SCR)/Modules

SCR type 1 bidirectional SCR

Shutter voltage (VGT) 1.5V

Maintain current (IH) at 80 mA

Peak disconnect voltage (VDRM) 800 V

Shutter current (IGT) 50 mA

Attribute parameter values

Turn on peak voltage (VTM) 1.55V

Starting current（ Itsm@f ）400A at 50Hz

Average scattering shutter power (PG (AV)) 1 W

Root mean square current (IT (RMS)) at startup 40A

Working temperature -40 ℃~125 ℃ (TJ)
