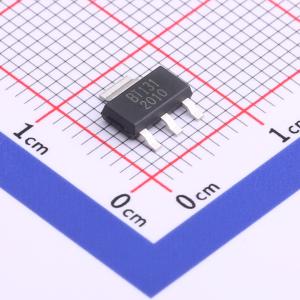

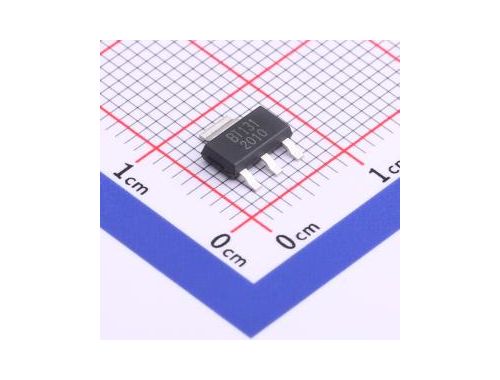

BT131S

Attribute parameter values

Product Catalog: Controllable Silicon (SCR)/Modules

SCR type bidirectional SCR

Shutter voltage (VGT) 1.3V

Maintain current (IH) 5mA

Peak disconnect voltage (VDRM) 800 V

Shutter current (IGT) 5mA

Attribute parameter values

Turn on peak voltage (VTM) 1.55V

Starting current（ Itsm@f (16A at 50 Hz)

Average scattering shutter power (PG (AV)) 500 MW

Root Mean Square Current (IT (RMS)) 1A when turned on

Working temperature -40 ℃~125 ℃.
